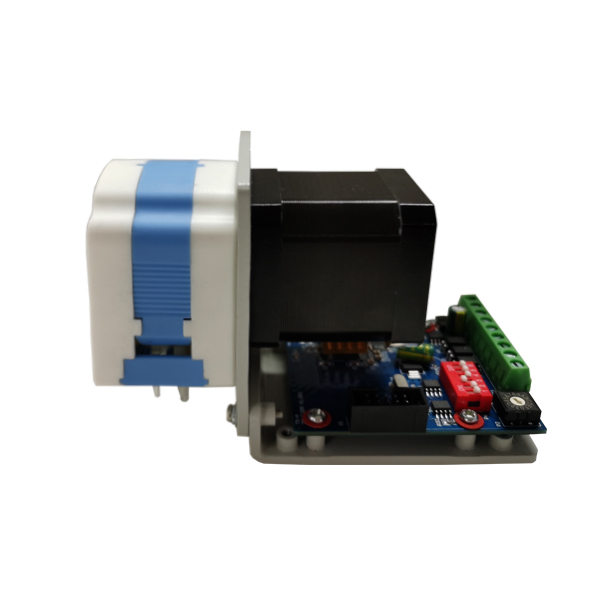

? The maximum speed of TS100-EA peristaltic pump is 100rpm and the maximum flow rate is 43ml/min.
? Stepper motor high-power subdivision drive, higher precision
? Adopt imported motor driver chip
? There are two control modes: internal control and external control
? Internal control adopts BCD DIP switch (15 gears in total) to adjust the speed discontinuously
? External control communicates through 0-10kHz (or 0-5V, 0-10V, 4-20mA, RS485; switch value controls start, stop and direction.
? The operation is simple and intuitive, and the power supply requires DC24V, which is suitable for OEM matching.

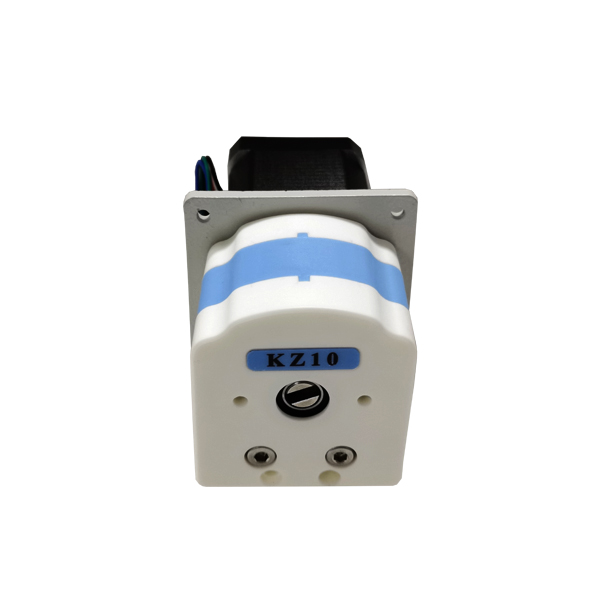

? A variety of control methods and drives can be equipped with KZ10 or KZ15 single pump heads, which are suitable for use in equipment and instruments.
? Stepper motor high-power subdivision drive, higher precision
? Adopt imported motor driver chip
? There are two control modes: internal control and external control
? Internal control adopts BCD DIP switch (15 gears in total) to adjust the speed discontinuously
? External control communicates through 0-10kHz (or 0-5V, 0-10V, 4-20mA, RS485; switch value controls start, stop and direction.
? The operation is simple and intuitive, and the power supply requires DC24V, which is suitable for OEM matching.
? A variety of control methods and drives can be equipped with KZ10 or KZ15 single pump heads, which are suitable for use in equipment and instruments.
| project | parameter |
| range of rotation | 0-100rpm |
| Internal control method | Binning adjustment |
| External control method | 0-100rpm, speed resolution 0.1rpm, full linear correspondence |
| Start-stop control | Switch quantity control: the contact is normally open, the peristaltic pump is running; the contact is closed (port 5 and port 7 are short-circuited), the peristaltic pump stops. |
| direction control | Switch control: the contact is normally open, and the peristaltic pump runs clockwise; the contact is normally closed (port 6 and port 7 are short-circuited), and the peristaltic pump runs counterclockwise. |
| Applicable power supply | DC24V |
| Power consumption | TS100-EA≤15W |
| working environment | Ambient temperature: 0-40℃, relative humidity: <80% |
| Dimensions | (L×W×H)60*121*80（mm） |
| weight | 0.6kg |
| Built-in hose length | 95mm |
| model | Number of channels | Number of rollers | range of rotation | Compatible hose specifications | Single channel maximum reference flow |
| KZ10-24 | 2 | 4 | 1*1 | 6 | |
| ≤100rpm | 2*1 | 20 | |||
| 3*1 | 30 | ||||
| 1 | 13# | 3.8 | |||
| 14# | 11 | ||||
| 19# | 25 | ||||
| 16# |
43 |
