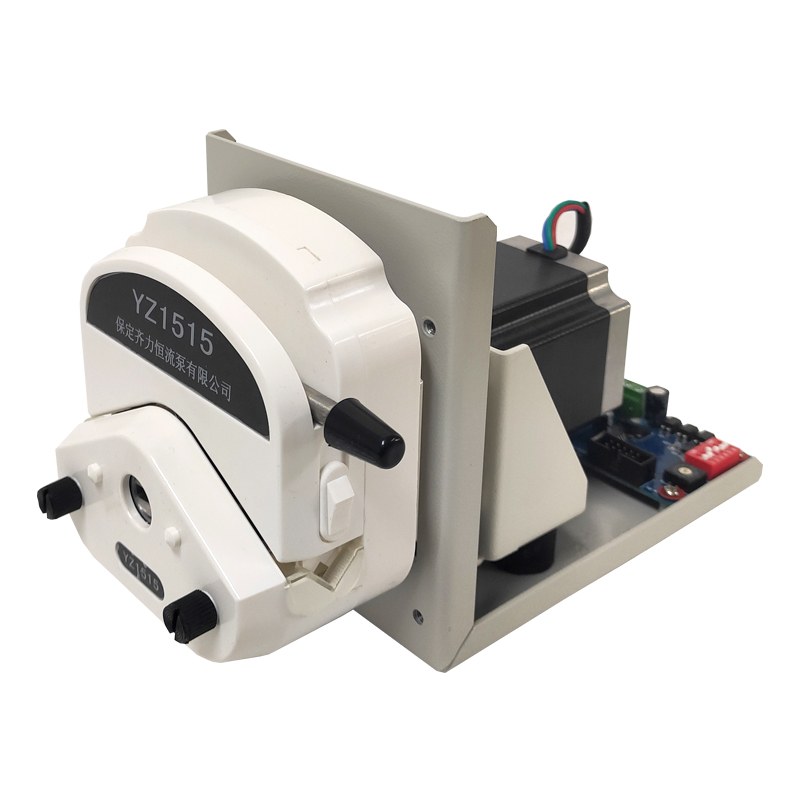

▲Stepper motor subdivided drive, DC power supply, high precision and stable operation.
▲The bottom plate installation method is divided into two control methods: internal control and external control.
▲The internal control adopts BCD dial switch, a total of 15 gears, and the speed is not continuously adjusted.
▲External control continuously adjusts the speed through 0-10KHz (or 0-10V, 0-5V, 4-20mA).
▲RS485 communication control possible (the company can provide Modbus protocol)
▲The switch value controls the start, stop and direction.
▲Beautiful appearance, small size, simple and intuitive operation, the power supply requires DC 11.4-25.2V range, suitable for OEM supporting use.
| Internal control speed range | The maximum speed is 100 (300 600) rpm, adjustable in stages | Speed resolution | 1rpm, full linear correspondence |
| External control speed range | 1～100rpm（300rpm、600rpm） | Speed error | ≤±1rpm |
| Internal control speed control | BCD dial switch adjustment | External speed control | 0-10KHz pulse control (or 0-5V, 0-10V, 4-20mA) |
| Start-stop control | Switch control, can control start and stop | Direction control | Switch quantity control, reversible forward and reverse directions |
| Applicable power supply | 11.4-25.2V DC; or 100-240V AC (optional power adapter) 50Hz/60Hz | Power consumption | ≤30W |
| working environment | Ambient temperature 0～40℃, relative humidity <80% | Dimensions | 163x102x136(mm) |
| (Length×Width×Height) | |||
| Drive weight | 1000g | Use hose |
13#、14#、19#、16#、25#、17#、18#、15#、24# |
| TS100 (300 600 )-B peristaltic pump flow parameters | ||||
| Applicable pump head | Applicable hose | Maximum flow ml/min | ||
| TS100-B | TS300-B | TS600-B | ||
| YZ1515 | 13# 14#19# 16# 25# 17# 18# | 380 | 1140 | 2280 |
| YZ2515 | 15# 24# | 270 | 800 | 1600 |
| DG-(1\2\4\6)6Scroll wheel |
Inner diameter≤3.17mm Wall thickness 0.8-1mm |
48 | 48 (It is recommended to use ≤100rpm) | |
| DG-(1\2\4\6)6Scroll wheel | 32 | 32(It is recommended to use ≤100rpm) | ||
